P6 PRO SERIES
Key Points
- • 0-5”, 15”, and 40” ranges; 10 selectable sub-ranges
- • 0-1250, 3750, and 10000 Pa ranges; 10 selectable sub-ranges
- • LCD display and LED indicator
- • Nema-4X enclosure (Duct/port version)
Applications
- • Building (zone) pressure
- • Filter condition measurement
- • Duct/static
- • Wash down environments

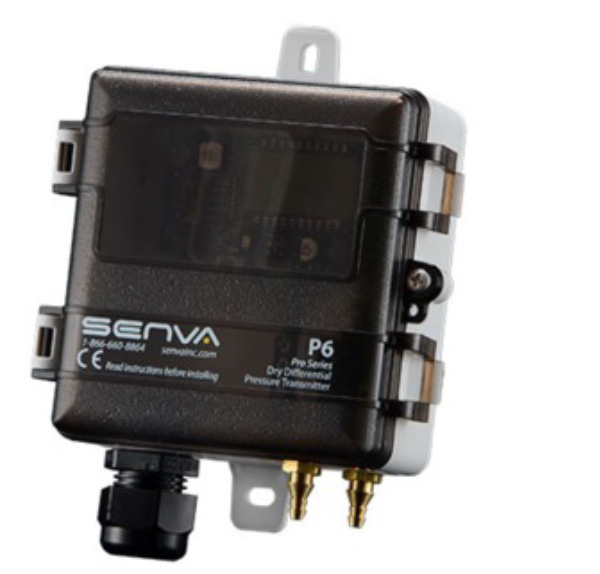

- The P6 universal dry media pressure transmitter accurately measures multiple ranges optimized for building (zone) pressure, filter measurement, and static duct applications. Selectable outputs and uni/bi directional readings reduce inventory. Conduit ready Nema-4 enclosure for harsh environments.
| MODEL | DESCRIPTION | LIST PRICE | VOC PRICE |
| P6-0500-1LP | DRY DIFF. PRESS. 5" ENCLOSED UNIVERSAL W/ LCD, DUCT PROBE | $360.00 | $174.00 |
| P6-0500-1LX | DRY DIFF. PRESS. 5" ENCLOSED UNIVERSAL W/ LCD, BARBS | $330.00 | $159.50 |
| P6-1500-1LP | DRY DIFF. PRESS. 15" ENCLOSED UNIVERSAL W/ LCD, DUCT PROBE | $360.00 | $174.00 |
| P6-1500-1LX | DRY DIFF. PRESS. 15" ENCLOSED UNIVERSAL W/ LCD, BARBS | $330.00 | $159.50 |
| P6-4000-1LP | DRY DIFF. PRESS. 40" ENCLOSED UNIVERSAL W/ LCD, DUCT PROBE | $360.00 | $174.00 |
| P6-4000-1LX | DRY DIFF. PRESS. 40" ENCLOSED UNIVERSAL W/ LCD, BARBS | $330.00 | $159.50 |
